Aerial device details

There are several types of powered aerial devices used to reach tall buildings or to provide an elevated platform for delivering water. The most common type is the aerial ladder. Many aerial devices include a platform at the end. Some aerial ladders have a pre-piped water way and a remote nozzle. Because of the weight of the aerial and the effect it has on the vehicles center of gravity when extended the vehicles have 2 or more outriggers to keep the vehicle from tipping over. These are usually hydraulically operated. The aerial device is generally operated from a control panel on the turn table or a hand held controller connected to the truck with a cable.

Aerial1.jpg (45294 bytes) Aerial2.JPG (55284 bytes) Aerial3.JPG (39215 bytes) Aerial4.JPG (43839 bytes)

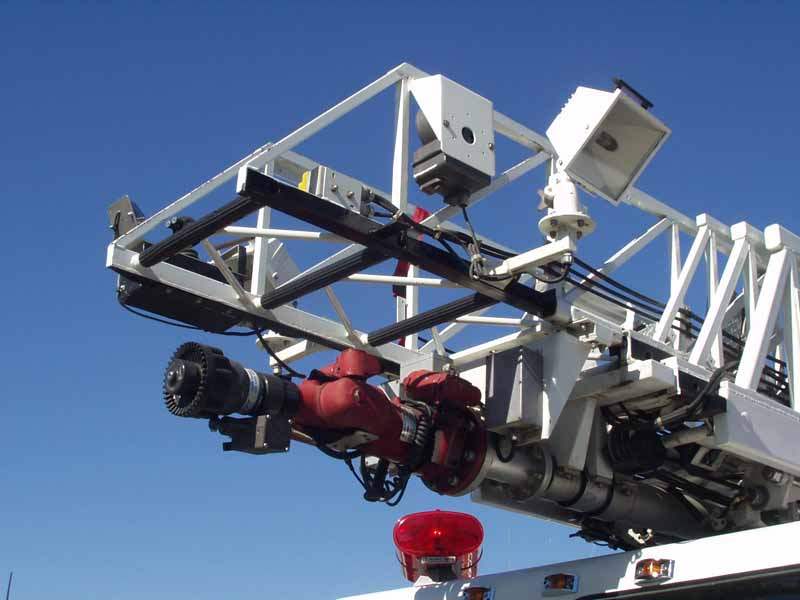

Ladder tip and remote nozzle Underside of platform Front of platform Side of platform
Aerial5.JPG (60595 bytes) Aerial6.jpg (60077 bytes) Aerial7.jpg (58610 bytes) Aerial8.jpg (50354 bytes)

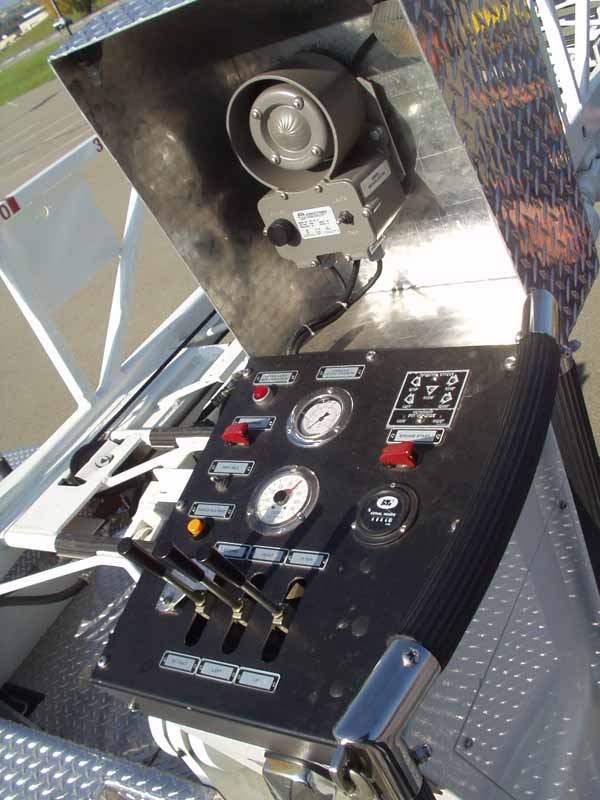

Side of platform Another platform Control panel Ladder showing angle gauge

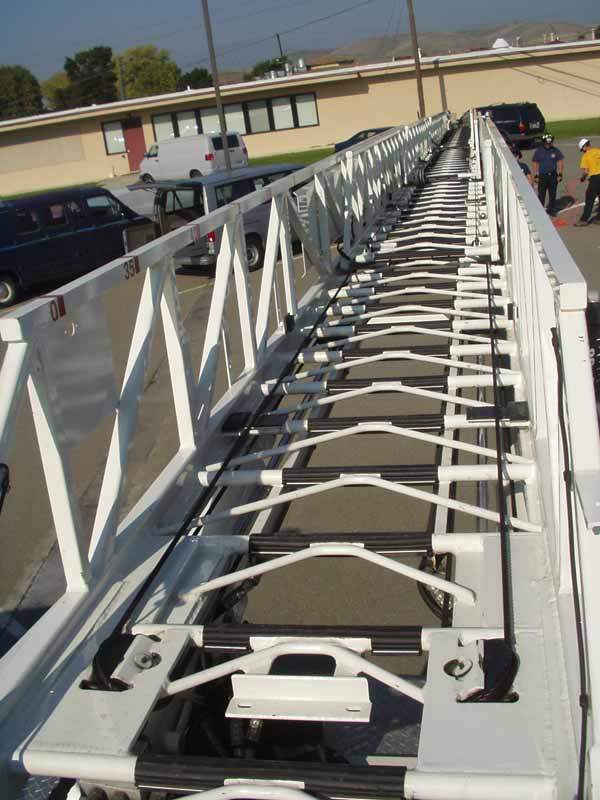

Ladder detail Ladder detail Outrigger
