APPARATUS LIGHTING

Most modern fire apparatus are well equipped with emergency lights to clear traffic and with scene lights to illuminate the work area at night. Smaller lights are powered off the vehicles electrical system but the introduction of small lightweight generators allows many vehicles to carry larger work lights of 1000w or more. These lights may be mounted on telescoping masts providing lighting to a large area or be portable allowing them to be carried close to the work or inside the building. One of the most common portable lights is the Circle D light although halogen type work lights are becoming quite common.

Most apparatus also include small lights to illuminate compartment interiors, steps and work areas such as pump panels. I have provided a few examples of tail lights and emergency lights but these are so numerous it is more practical to refer to manufacturer websites and many are included in the links section.



circle_d.jpg (11842 bytes) circle_d_new.JPG (15148 bytes) circle_d_halo.JPG (14971 bytes) halogen.jpg (30944 bytes)
Circle D portable light

The Circle D light has been used by the fire service since the 1950's. It uses 150-300w incandescent bulbs

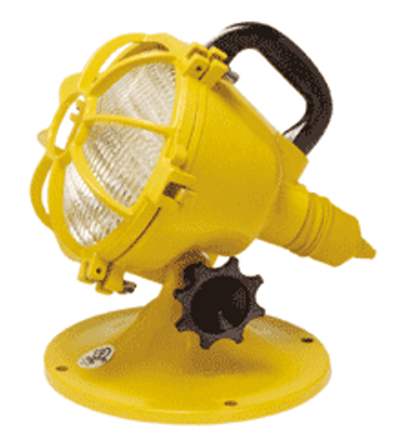

Circle D portable light

This is a modernized version of the Circle D light with a 300w bulb

Circle D portable light

This is a modernized version of the Circle D light with a 500w halogen bulb

Halogen portable light

An example of a portable halogen work light



light8.jpg (71390 bytes) light5.jpg (62947 bytes) light3.jpg (66679 bytes) light4.jpg (47392 bytes)
Scene light

This light has a pair of halogen lights inside a standard warning light cover. It runs off standard 12v power system

Scene light

This is a light on a flexible mounting, it uses a flood or spotlight bulb. It runs off of a standard 12v system.

Scene light

Another view of the light, these lights are very common on the back of fire apparatus

Scene light

Another view of the light

light9.jpg (45081 bytes) light1.jpg (49440 bytes) light6.jpg (54177 bytes) light7.jpg (63585 bytes)
Telescoping scene light

Another type of halogen telescoping light. It requires a generator or inverter system to power it

Telescoping scene light

Close up of the light

Telescoping scene light

This is a telescoping scene light that uses a 1000w halogen light. It requires a generator or inverter system to power it

Telescoping scene light

Another view of the light

Telescoping scene light

This is a scene light that uses 3 spot or floodlights on a telescoping mount. It runs off of a standard 12v power system




Step light

This is a light used near steps, pump panels or other areas requiring illumination. It uses a 12v bulb like those in a marker or tail light

Mars light

Also known as the 888 or Light from Mars. This is a warning light adapted from train locomotives

Mars light

These lights are generally mounted in pairs on the front of the apparatus. The light mount travels trough a figure 8 pattern greatly increasing its warning power over a standard fixed warning light

Warning strobe

This is a common style of warning light, it uses a strobe light or halogen light. It is available in many colors

taillight1.jpg (82457 bytes) taillight4.jpg (40486 bytes) taillight2.jpg (70975 bytes) taillight3.jpg (76865 bytes)
Tail light

This is an example of the rear lights on an apparatus using a variety of standard light covers. Similar covers are used for scene lighting or warning lights

Tail light

This is an example of another common type of light housing used for the rear lighting on apparatus

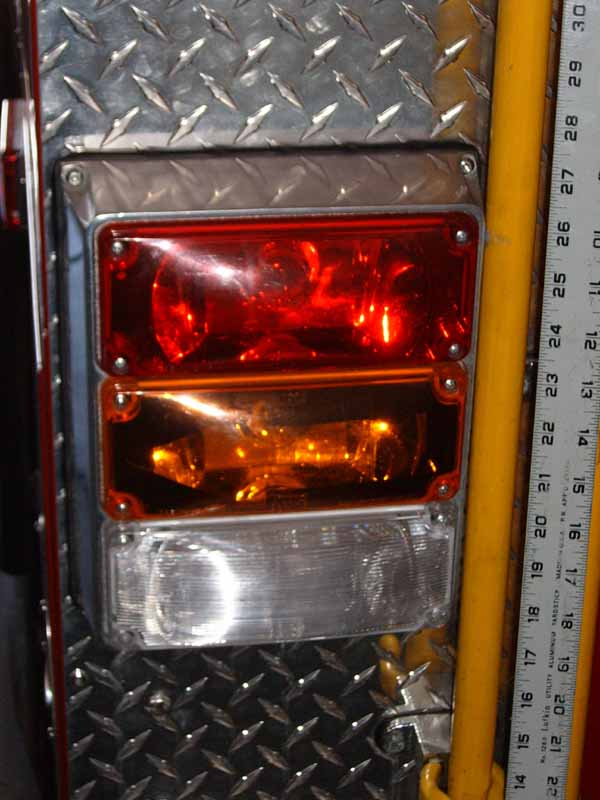

Tail light

Another type of light housing

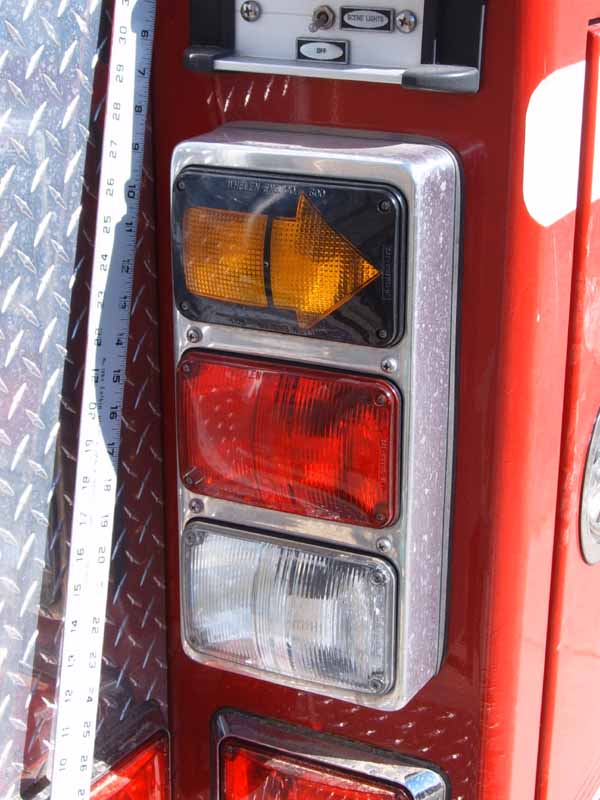

Tail light

Another style of light housing
