RESCUE EQUIPMENT

In much of the United States the local fire department has become responsible for providing rescue, in some areas this is handled by the local police or Sheriff's department or a combination of all of the above.

While there are no nationwide standards defining the levels of rescue, these pictures give an idea of how much rescue equipment you can expect to find on rescue vehicles.

Hydraulic rescue tools better known to the public as "The jaws of life" have become a common feature at vehicle accidents. These were originally invented for auto racing but quickly found use in the emergency services.

Air tools are also common to see in use at vehicle accidents or a building collapse. Air chisels are used to cut away sheet metal or chip away concrete, air powered ratchets can be used to disassemble machinery, pneumatic struts can be used to brace trenches or collapsed buildings and air bags are used to lift heavy objects.

With the wide use of generators and powerful cordless battery powered tools, electric saws and drills are becoming very popular.

Ropes and litter baskets have been in commonly used in rescue for many years.

Cribbing blocks are primarily used to stabilize objects including vehicles, heavy machinery and partially collapsed buildings.

Basic rescue equipment

This shows the minimum level of equipment that should be carried on apparatus that may participate in rescue operations. This is typical of most pumpers.

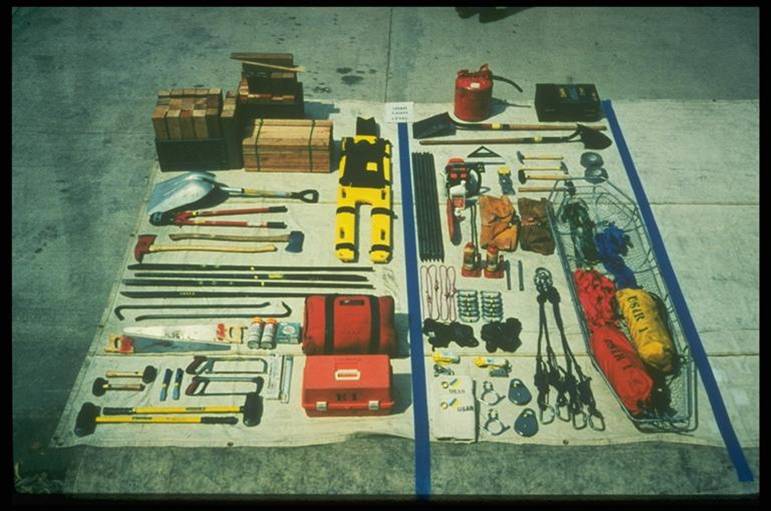

Light rescue equipment

This shows the the minimum level of equipment that should be carried to be considered a light rescue. This level is typical of many ladder trucks.

Medium rescue equipment

This shows the minimum level of equipment that should be carried on a medium rescue.

Heavy rescue equipment

This shows the minimum amount of equipment that should be carried to qualify as a heavy rescue. Many heavy rescue trucks carry much more than this.

combi-tool hurst9.jpg (60558 bytes) hurst12.jpg (51051 bytes) Cutter
Hydraulic combination tool

This is a combination cutting and spreading tool.

Hydraulic combination tool

This is another combination tool.

Hydraulic combination tool

And another combination tool.

Hydraulic cutter

This is a cutting tool, while not as versatile as the combination tool it can cut much larger pieces or metal.

Spreader hurst10.jpg (58879 bytes) Rams

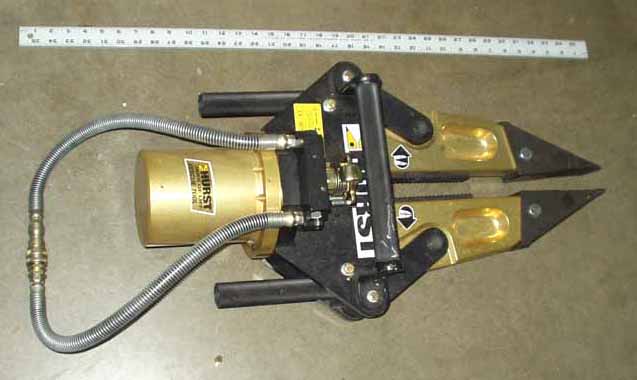

Hydraulic spreader

This is a spreading tool, it can spread thicker metal and spreads much further than a combination tool.

Hydraulic spreader

This is another spreading tool.

Hydraulic rams

Rams are used to push objects apart.

Hydraulic ram

Close up of a ram.

Hydraulic power unit

Hydraulic tools require a pump to function. This is a small gas powered unit capable of operating one tool.

Hydraulic power unit

Another view of the power unit.

Hydraulic power unit

This is a larger gas powered unit capable of operating two tools simultaneously.

Hydraulic power unit

Another view of the power unit.

hurst11.jpg (64332 bytes) Hydraulic lines Reel hurstmount.jpg (90106 bytes)

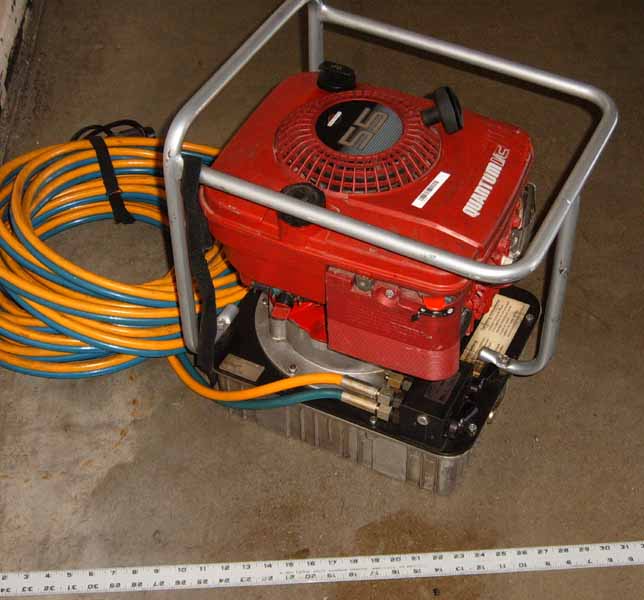

Hydraulic power unit

This is a small power unit for hydraulic tools.

Hydraulic line reels

Hydraulic tools require lines for the hydraulic fluid to flow through. These are powered reels usually mounted on a vehicle.

Hydraulic line reel

Close up of reel.

Mounted hydraulic rescue tools

This shows a nicely organized vehicle mount with two hydraulic line reels, a power unit and an electrical cord reel.

Airbags Airbag aircart3.jpg (39541 bytes) aircart1.jpg (50953 bytes)
Air bags

Airbags are used to lift heavy objects a few inches at a time.

Air bag

Close up of a medium size air bag.

Air cart

This is an air cart used to power air tools or supply breathing air (more under breathing support).

Air cart

Air cart with a cover.

Air chisel Air chisel airchisel4.jpg (96923 bytes) airchisel3.jpg (43560 bytes)
Air chisel

Air chisels are lighter and easier to use than hydraulic tools making them a better choice for some tasks.

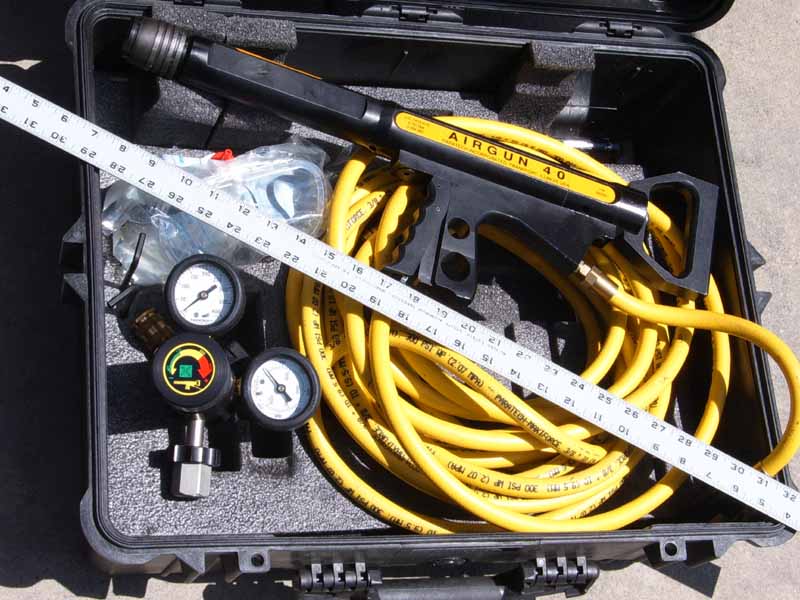

Air chisel case

Tool box for air chisel set.

Air chisel

This is a heavy duty air chisel.

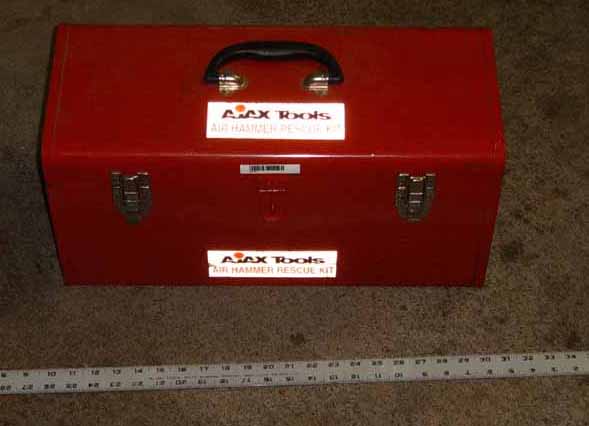

Air chisel case

Storage case for air chisel.

strut.jpg (40352 bytes) recipsaw2.jpg (54147 bytes) recipsaw.jpg (49369 bytes) recipcase.jpg (42127 bytes)
Pneumatic strut

Pneumatic struts such as this are helpful for stabilizing collapsed buildings or trenches.

Reciprocating saw and case

Reciprocating saws are used for cutting metal and wood. They are lightweight and don't produce exhaust making them useful in confined areas.

Reciprocating saw

This is a cordless reciprocating saw

Reciprocating saw case
stokes1.jpg (44351 bytes) stokes2.jpg (50705 bytes) stokes3.jpg (70167 bytes) rescueeq2.jpg (39826 bytes)

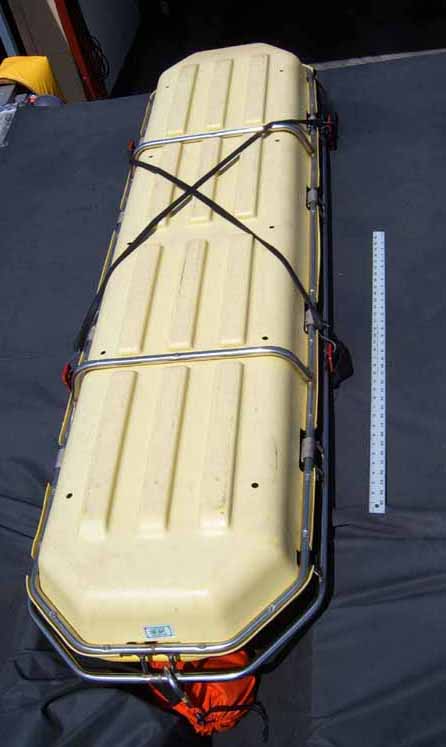

Stokes basket

The stokes basket is used for moving a patient out of an inaccessible area. It can be used to carry a patient up a slope or hoist them up a cliff with ropes.

Stokes basket

This is another style of stokes basket.

Stokes basket

Another view.



Miller board

This is a spinal immobilization board useful for water rescues or for getting a patient out of tight spaces.

ropebag2.jpg (65461 bytes) ropebag.jpg (48805 bytes) ropebag3.jpg (67947 bytes) roperescue6.jpg (58214 bytes)
Rope bags Rope bag Rope bag detail Rope rescue bag
roperescue3.jpg (85390 bytes) roperescue4.jpg (89758 bytes) roperescue5.jpg (75086 bytes) roperoller1.jpg (76538 bytes)
Rope rescue equipment

Various hardware and software for rope rescue.

Rope rescue detail

Hardware for rope rescue. Anchor plate, carabiners, brake bar rack and belay system.

Rope rescue harness

Class 3 harness for rope rescue.

Rope roller

Rope rollers are used to help rope go over corners.

roperescue.jpg (66932 bytes) roperescue2.jpg (88260 bytes) tripod1.jpg (54641 bytes) tripod2.jpg (99212 bytes)

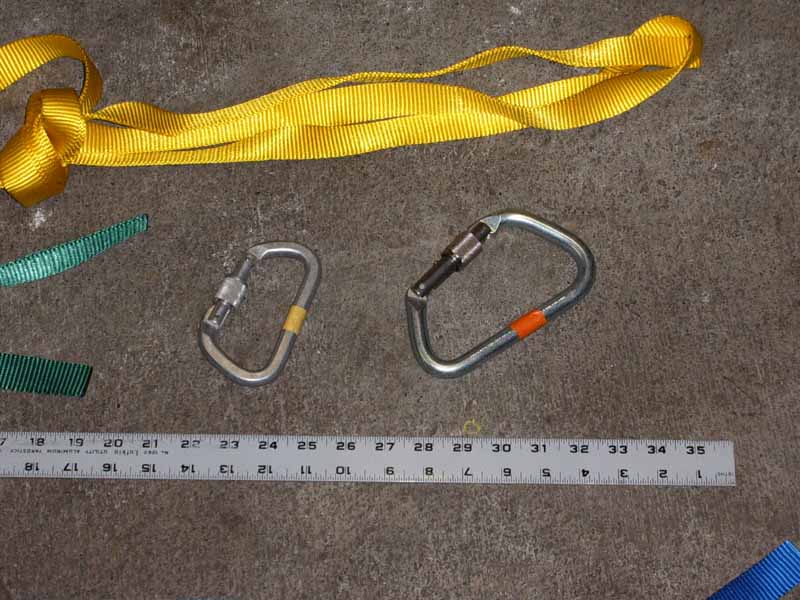

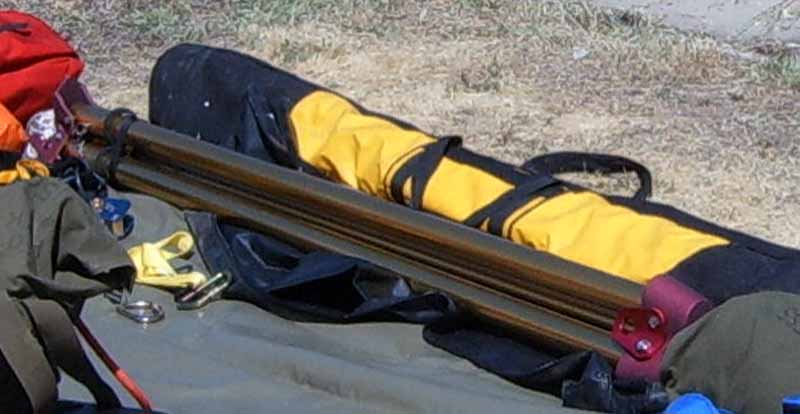

Webbing and carabiners Carabiners Tripod

This is a folding tripod used for a variety of rescue situations.

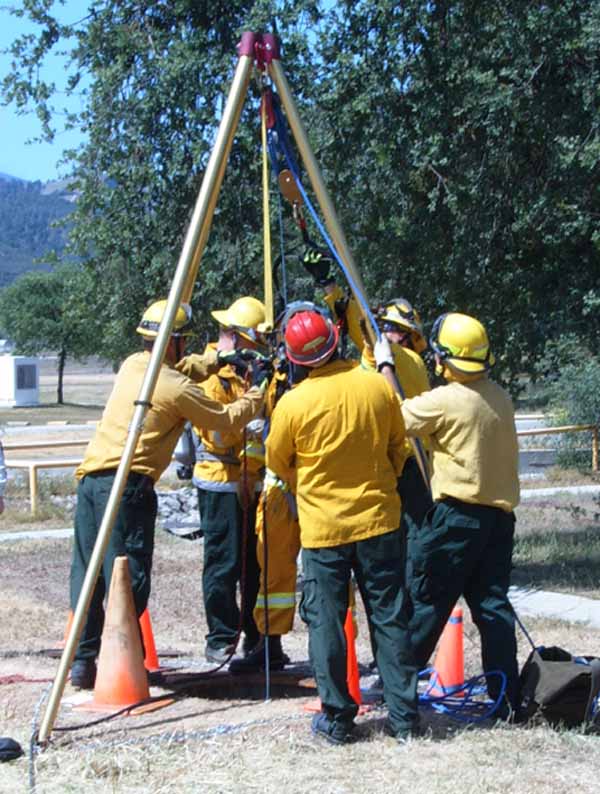

Tripod in use

crib1.jpg (63327 bytes) stepchock.jpg (52096 bytes) comealong.jpg (58915 bytes) rescueeq1.jpg (104360 bytes)
Cribbing

Cribbing is used to support vehicles or collapsed buildings. Wood is a popular material because it is cheap, strong and readily available.

Synthetic Step chock

Cribbing can be made of wood or plastic. This is an example of a plastic step chock.

Come-along

The come along is a simple winch useful in many rescue situations.

Assorted rescue equipment

This is an example of how much equipment can be carried on a light rescue.
